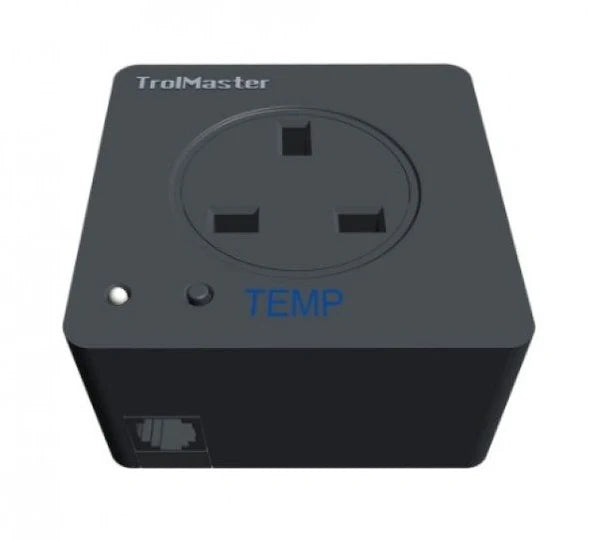

TrolMaster Hydro-X Temperature Device Station (DST 2U)

The TrolMaster DST-2 Temperature Device Station allows you to easily connect and control standard heating or cooling devices directly to the Hydro-X controller. This module supports control of any heating or cooling device under the world voltage standard (100-240 VAC, 50/60 Hz), up to 10 amps — making it compatible with a wide range of equipment worldwide.

LED Status Indicators

• Blinking green FAST: Module has not been addressed to the controller, or does not have a good connection. Press the small button on the module to address/link it when first installed.
• Blinking green SLOW: Module is addressed and connected to the controller, and is currently turned OFF.
• Solid green: Module is addressed, connected, and currently turned ON.
• Blinking red: Module has been overloaded. Unplug the module from power to reset.

By pressing and holding the button on the DST-2, users can manually override the module and turn it ON/OFF.

What's in the Box

• 1 x Device Station
• 1 x 16ft RJ12 Cable
• 1 x 4ft RJ12 Cable
• 1 x RJ12 T-Splitter

Specifications

• Input Voltage: 240 VAC, 50/60Hz
• Plug & Play
• 3-Prong Attaching Plug
• Output Current: 10A
• Output Voltage: 240 VAC, 50/60Hz
• Operating Temperature: 32–122°F, Humidity ≤90%
• Package Dimensions: 85mm (L) x 80mm (W) x 90mm (H)
• Weight: 0.34kg
