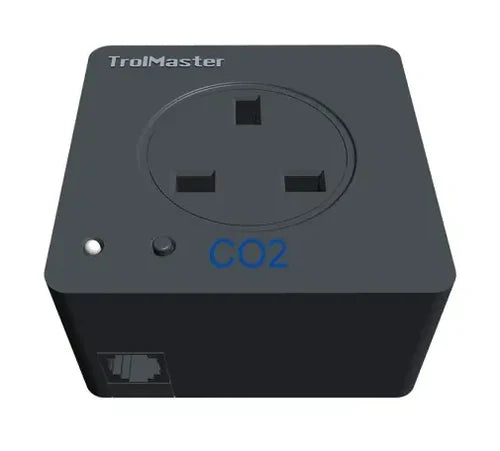

TrolMaster Hydro-X CO2 Device Station (DSC-2)

The TrolMaster DSC-2 CO2 Device Station is specially designed for the control of CO2 devices in the Hydro-X Control System. This CO2 control relay allows you to easily connect and control standard supplemental CO2 devices or CO2 exhaust controls directly to the Hydro-X. Any CO2 device that draws 10 amps at 100–240 volts or less can be controlled by the DSC-2.

Used in combination with the MBS-S8 CO2 Sensor, the DSC-2 enables fully automated, closed-loop CO2 management — maintaining optimal CO2 levels throughout your grow cycle without manual intervention.

Key Benefits

• CO2 device control — connects and controls supplemental CO2 equipment via the Hydro-X
• 100–240V compatibility — supports devices up to 10 amps across all world voltage standards
• Closed-loop CO2 automation — use with MBS-S8 CO2 Sensor for fully automated CO2 management
• LED Power Indicator — clear visual confirmation of operation status
• Plug & Play — simple RJ12 connection, no complex wiring required
• Addressing — easily assigned to your Hydro-X controller

Instructions for Use

1. Connect the DSC-2 to your Hydro-X controller using the RJ12 cable.
2. Plug your CO2 device into the DSC-2's 3-prong output socket.
3. Power on the Hydro-X and confirm device recognition.
4. Ensure the MBS-S8 CO2 Sensor is connected for closed-loop CO2 control.
5. Set your desired CO2 setpoints within the Hydro-X interface.
6. Monitor the LED indicator to verify correct operation.

Features

• LED Power Indicator
• 3-Prong Attaching Plug
• RJ12 Cable Socket
• Addressing
• Plug & Play

Specifications

• Input Voltage: 100–240 VAC, 50/60Hz
• Output Current: 10A
• Output Voltage: 100–240 VAC, 50/60Hz
• Working Environment: Temperature 32–122°F, Humidity ≤90%
• Package Dimensions: 85mm (L) x 80mm (W) x 90mm (H)
• Weight: 0.34kg
