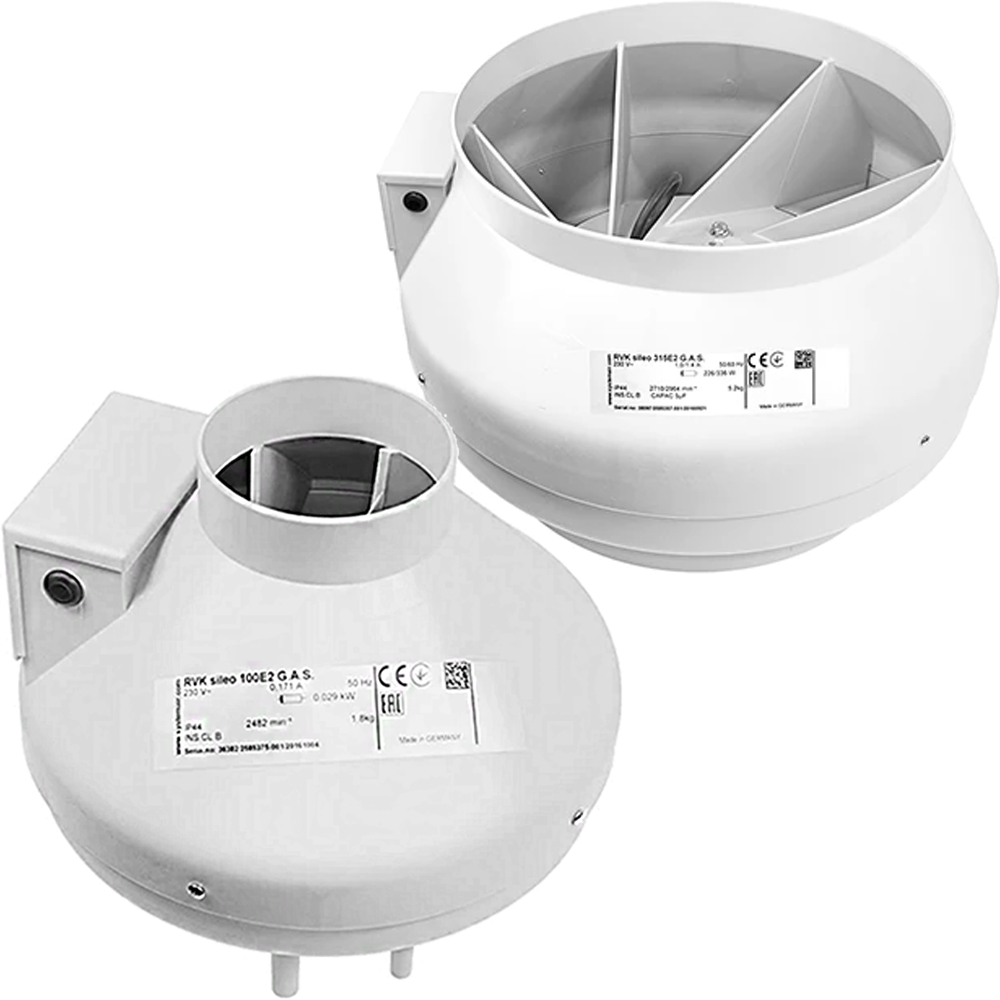

The Systemair RVK inline extraction fan provides ventilation for indoor growing spaces and horticultural setups. Choose from ten models with duct connections from 100mm to 315mm to suit your extraction system.
Key Features
- Designed for continuous operation in ventilation systems.
- Compatible with suitable triac and voltage-based fan speed controllers for adjustable airflow.
- Works with correctly sized ducting, carbon filters and silencers.
- Can be mounted in different positions using the included brackets.
- Compatible with suitable DiffuseAir units for air distribution.
Choosing Your Fan
Match the duct diameter to your ventilation equipment and select the airflow appropriate for your space. A1 and L1 versions offer different airflow ratings at the same duct diameter. Filters, duct runs and bends affect installed airflow, so allow for these when sizing your system. Silencers can help reduce duct noise; actual sound levels depend on the model, speed and installation.
Technical Specifications
| Model | Duct Size | Airflow (m³/h) | Max Power (W) | Current (A) |
|---|---|---|---|---|
| RVK 100 A1 | 100mm | 184 | 33 | 0.14 |
| RVK 125 A1 | 125mm | 220 | 33 | 0.14 |
| RVK 125 L1 | 125mm | 323 | 52 | 0.23 |
| RVK 150 A1 | 150mm | 428 | 64 | 0.28 |
| RVK 150 L1 | 150mm | 720 | 103 | 0.45 |
| RVK 200 A1 | 200mm | 796 | 107 | 0.46 |
| RVK 200 L1 | 200mm | 1008 | 110 | 0.48 |
| RVK 250 A1 | 250mm | 860 | 108 | 0.47 |
| RVK 250 L1 | 250mm | 1080 | 113 | 0.49 |
| RVK 315 A1 | 315mm | 1360 | 145 | 0.63 |
Check the selected model's rating plate and manufacturer instructions before installation. Use a speed controller suitable for the fan's motor and electrical load.
