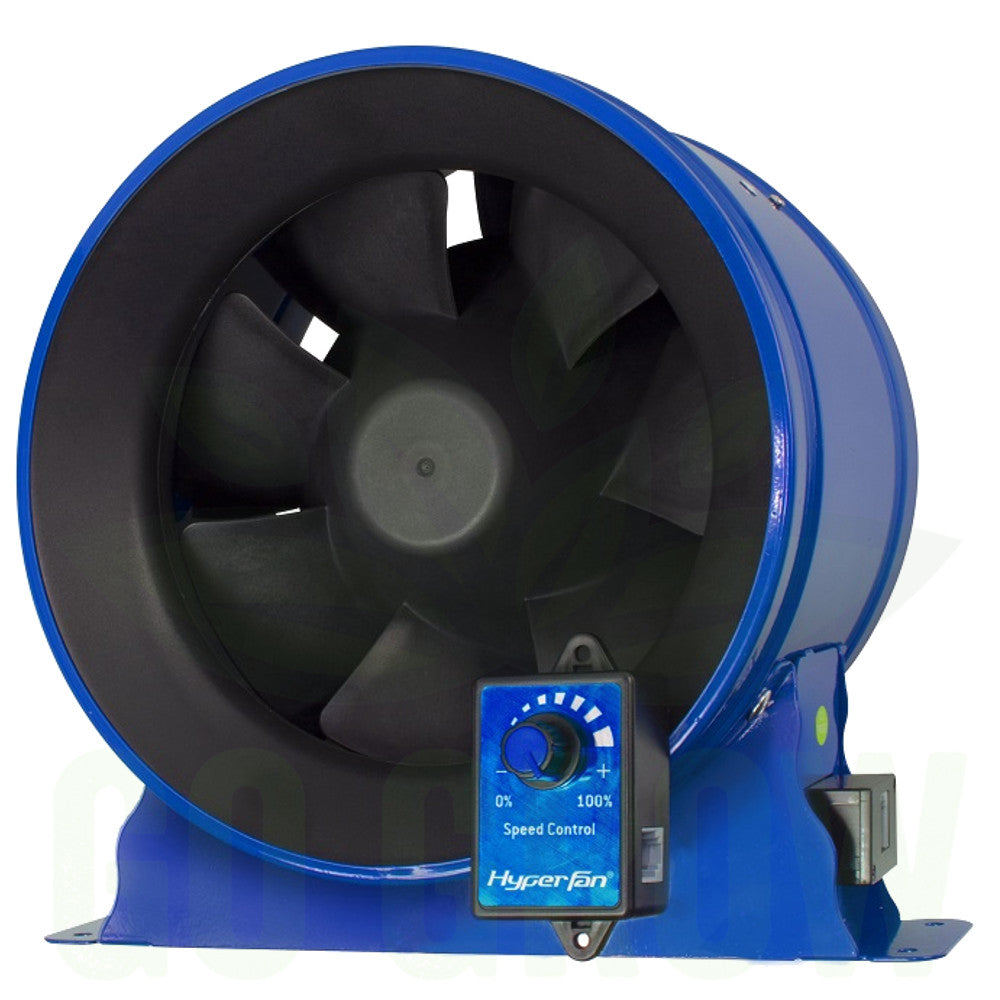

Phresh Hyper Fan V2 EC
Phresh Hyper Fan V2 EC - 6"/150mm (535m3/hr) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
The Phresh HyperFan V2 EC is a top-end duct fan engineered for high static pressure, efficient airflow, and precise control. Designed for serious grow rooms and extraction systems, it features a robust EC (electronically commutated) motor, 0-10 V dimming compatibility, and high performance under load—even with filters and ducting installed.
Key Benefits
-
Exceptional airflow and static pressure even under load
-
EC motor offers high efficiency, low power consumption and quiet operation
-

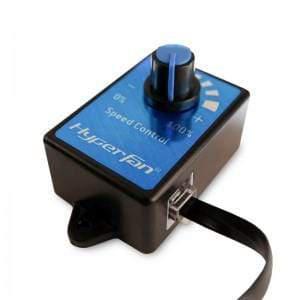

0–100% and 0-10 V compatible for full controller integration
-
Multiple diameter sizes for matched airflow to grow room size
-
Built to last: steel housing, 9-pole motor, bearings, plug-and-play design
Technical Flow Rates & Sizes
With airflow and pressure ratings that outperform many standard duct fans, the HyperFan V2 is ideal when you need serious extraction power or intake control in grow rooms, large tents, or commercial environments. The EC motor ensures you’re not wasting electricity, and the 0-10 V control compatibility makes integration into climate control systems straightforward.
Buy Phresh HyperFan V2 at GoGrow UK
At GoGrow, we stock the complete range of Phresh HyperFan V2 sizes with fast UK delivery and expert support. Select the correct diameter size for your ducting and airflow requirement then order today to optimise your ventilation setup.
Phresh Hyper Fan V2 Specifications
| Model | 150mm | 200mm | 250mm | 315mm | |
|---|---|---|---|---|---|
| Diameter (mm / Inches) | 150 / 6 | 200 / 8 | 250 / 10 | 315 / 12.5 | |
| Max Flow (m3/hr) | 560 | 1230 | 1840 | 3100 | |
| Max Flow (L/s) | 156 | 342 | 512 | 862 | |
| Max Flow (CFM) | 330 | 725 | 1084 | 1827 | |
| Pressure (Pa) | 545 | 560 | 610 | 730 | |
| Noise (dBA) | 66 | 69 | 72 | 74 | |
| Voltage (Volts AC) | 240 | 240 | 240 | 240 | |
| Max Power Usage (Watts) | 42 | 90 | 180 | 320 | |
| Suggested Grow Area (m) | 2 x 2 x 2 | 2 x 4 x 2 | 4 x 4 x 2 | ||
| Max Room Size (Watts) | 1500 | 3000 | 5000 | 10000 | |
| Length (mm) | 140 | 170 | 205 | 255 | |
| Width - Including Bracket (mm) | 204 | 248 | 314 | 364 | |
| Weight (kg) | 1.9 | 2.8 | 4.8 | 6.5 |
