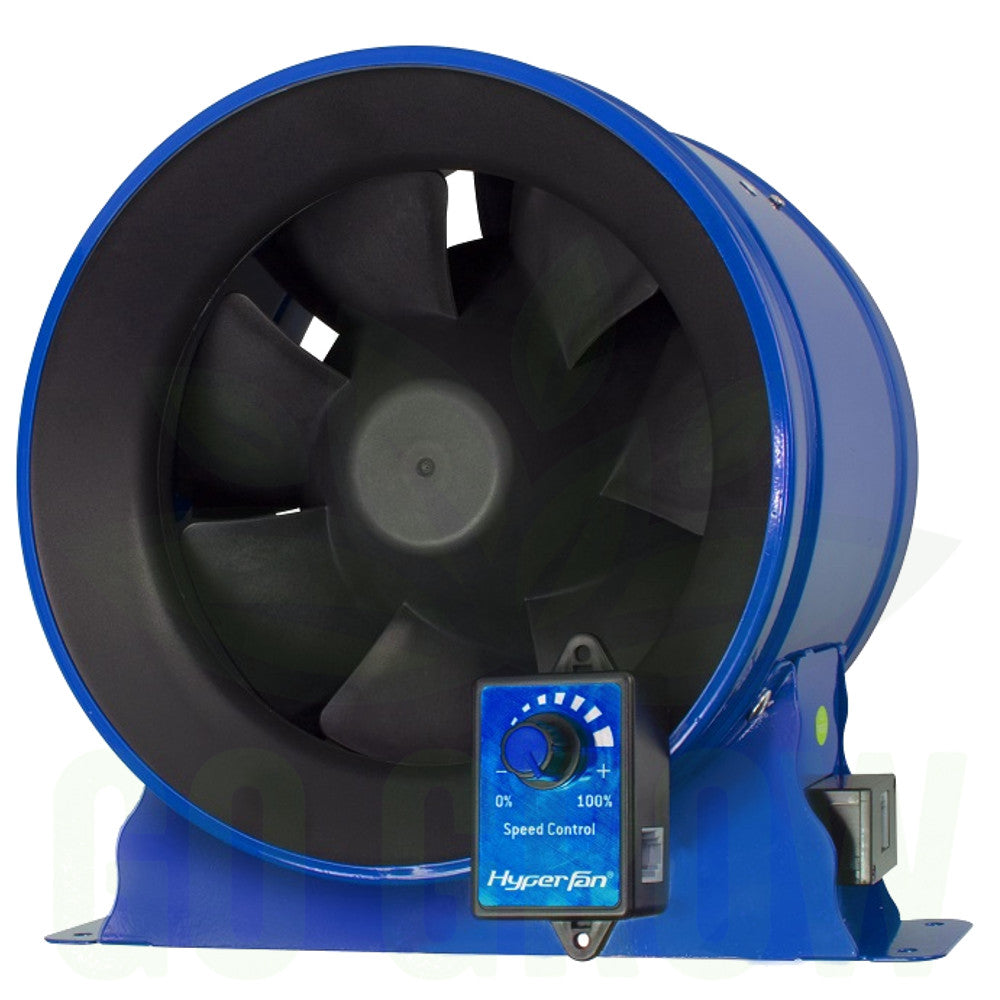

Phresh EC Hyper Fan V2

£149.95

HyperFan v2 - Phresh

This brand new design gives you high static pressure, upto 680pa. The much improved 0-10 V motors offer a smooth functioning system as well as a built in speed controller and speed adjustment from standstill to full power with no droning sound. The fan blades have also been looked at in this new model so have been balanced and refined further to near perfect tolerances which reduces air noise and increases bearing life. The unit is finished off with a steel blue casing for strength and integrity.

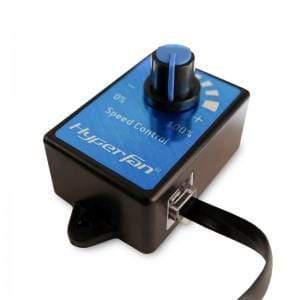

A detachable speed controller is included and connects/disconnects easily via the new and improved RJ14 ports. 5 meter RJ14 cable is also included.

Please note: Speed controller compatability with 0-10V signal only! 0-5V signal controllers are not compatible.

Features

  • New 9 pole digital EC "brush-less" motors
  • EC digital brushless motors are quieter, operate at lower temperatures, energy efficient and reliable
  • Higer fan efficiency @ 7.85 CFM per watt
  • Higher linear air flow output than other fans
  • High Pressure Laminar Air Flow/Taper Blade & Stator Technology
  • Detachable fully variable speed controller included with each fan
  • Sturdy steel housing and Abec 7 ball bearings
  • 0 - 10V controller compatible via RJ9 or RJ11 cable
  • Compatible with Climate Control V2 (sold separately)
  • 2 Year Warranty

Phresh Hyper Fan V2 Specifications

Model 150mm 200mm 250mm 315mm
Diameter (mm / Inches) 150 / 6 200 / 8 250 / 10
315 / 12.5
Max Flow (m3/hr) 560 1230 1840
3100
Max Flow (L/s) 156 342 512
862
Max Flow (CFM) 330 725 1084
1827
Pressure (Pa) 545 560 610
730
Noise (dBA) 66 69 72
74
Voltage (Volts AC) 240 240 240
240
Max Power Usage (Watts) 42 90 180
320
Suggested Grow Area (m) 2 x 2 x 2 2 x 4 x 2 4 x 4 x 2
Max Room Size (Watts) 1500 3000 5000
10000
Length (mm) 140 170 205
255
Width - Including Bracket (mm) 204 248 314
364
Weight (kg) 1.9 2.8 4.8
6.5
