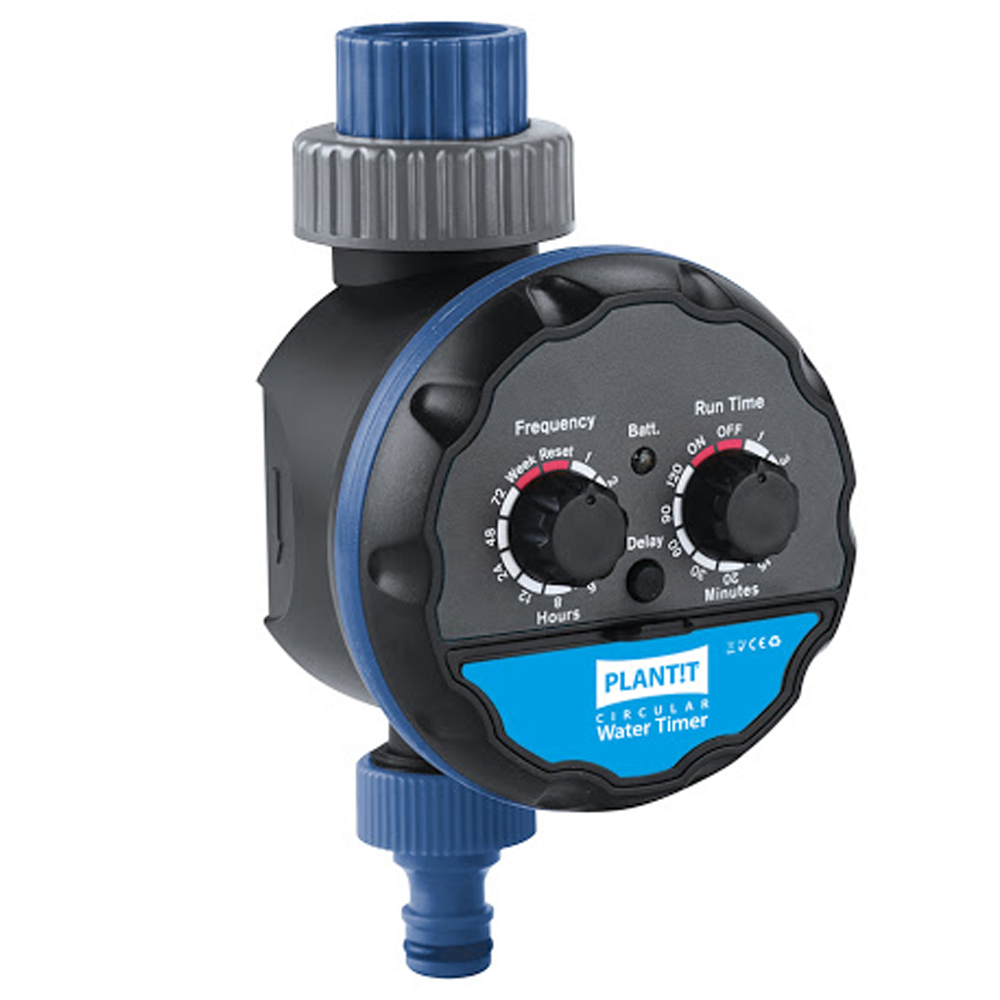

PLANT!T Water Timer

Plant It Water Timer is a gravity fed and main pressure irrigation controller. The water timer can be used with mains water from a tap outlet or with gravity feed system from a tank, water butt or reservoir. Simply select the time you want the water supply to be turned on and off, link up to your irrigation dripper line and the timer will do the rest.

In only 2 easy steps to programme – turn RUN TIME dial to desired irrigation time and turn FREQUENCY dial to desired time you want between irrigations. Ideal for gravity feed allotment systems to control feed from a water butt/reservoir.

The water timer is operated with two 1.5v AAA alkaline batteries (not included) that can last a full season without needing to be changed. It also comes with an Auto safety valve shut-off when battery power is low and programme delay button for when you need to do plant maintenance work and don’t want to be irrigating.

Working pressure range: 0-150 PSI (0-10 BAR)

Connection: ¾ male/female tap/hose connector

Frequency: Can select to irrigate every 1, 2, 3, 4, 6, 8, 12, 24, 48, 72 hours or 1 week

Run (on) time: 1, 3, 5, 10, 15, 20, 30, 60, 90 or 120 minutes

Tip: Plant It water timer comes with all required fittings and inline filter.Also comes with all accessories for Gravity feed kit.
